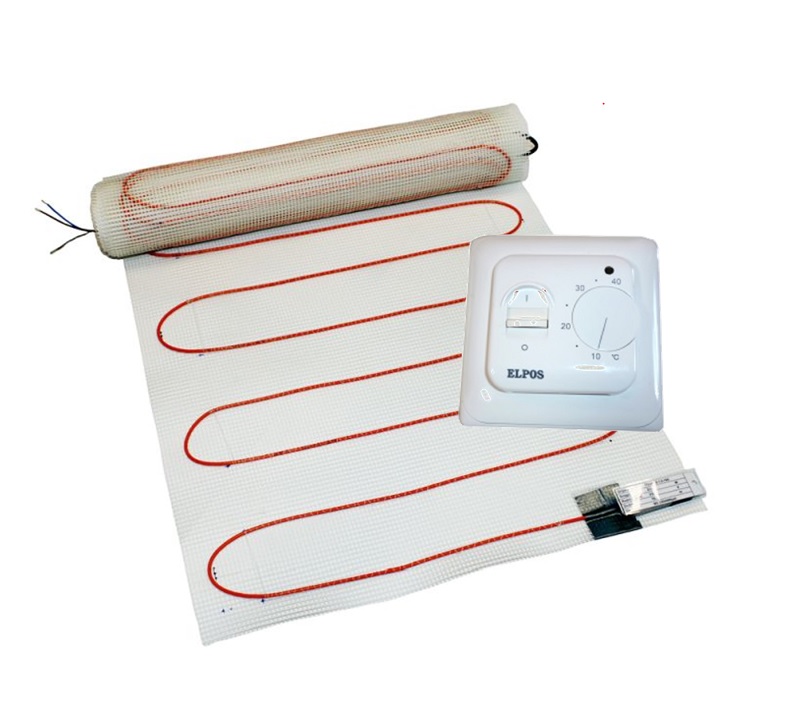

Set of heating mat TGMt + thermostat RTC70 / MT26
*price, EXW ELPOS Ltd., Požega, Croatia, valid from 1.9.2024.
[wooscp id="7976"]
These kits are made up of equipment for making underfloor electric heating of smaller rooms, such as bathrooms and kitchens.
We offer 3 dimensions of thin heating mats of the TGMt type (1.5; 2.2 and 3.1 m²), standard width 0.5 m and unit power 160 W / m². An electronic thermostat type RTC70 / MT26 is used for heating control, easy to operate and reliable in operation.
Info
HEATING MAT
area: 1.5 or 2.2 or 3.1 m²
unit power: 160 W / m²
width: 50 cm
thickness: 3.1 to 3.5 mm
operating voltage: 230 V ~
THERMOSTAT
temperature range: 5 to 40 °C
floor sensor: NTC 10 kΩ / 25 °C, length 3 m
relay output: 16 A
power supply: 230 V
installation: under the plaster box ɸ 60 x 60 mm or 70 x 70 x 50 mm, box for plasterboard ɸ 68 x 55 mm
